FURNACE CONSTRUCTION



Induction Heating Equipment for Melting

  • high productivity due to fast melting
  • easy and better metal composition control
  • noise and air pollution free operation
  • clean working environment

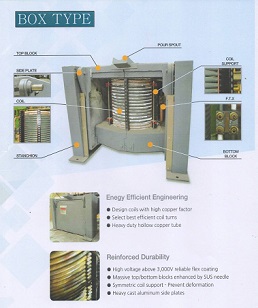

FURNACE CONSTRUCTION
Copper alloy melting under construction.
Capacity:5 t,850KW



Induction Heating Equipment for Copper Bar Continuous Casting

  • for indirect and continuous casting of 60mm to 200mmO bars
  • high production capacity
  • process eliminate rejects due to impurities, gas holes and chips thus producing high density & homogeneous bars
  • computer controlled system and operation

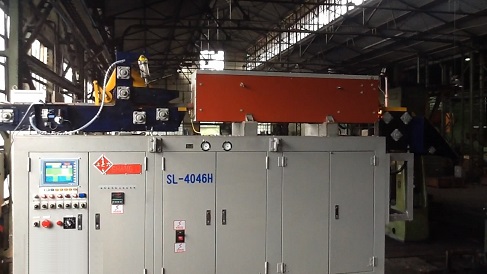

For Billet Heating Bar Heating


Type

Power
Out Put

Power
In Put

FREA
KHZ

Billet
Diameter
m/m

Billet
Length
m/m


kw/kg/hr

SL-10H

100 KW

115 KVA

4íV5

20íV45

25íV150

2.2

SL-15H

150 KW

177 KVA

3íV5

20íV45

25íV150

2.2

SL-20H

200 KW

233 KVA

2.5íV3.5

20íV50

25íV250

2.4íV2.6

SL-25H

250 KW

291 KVA

3íV4

20íV50

25íV250

2.4íV2.6

SL-30H

300 KW

349 KVA

2íV3

35íV80

35 íV300

2.6íV2.8

SL-35H

350 KW

407 KVA

2íV3

45íV80

35íV350

2.6íV3.0

SL-40H

400 KW

465 KVA

2íV3

45íV80

35íV400

2.8íV3.2

SL-50H

500 KW

582 KVA

1íV3

50íV100

50íV500

2.8íV3.2

SL-60H

600 KW

698 KVA

1íV3

50íV100

50íV600

2.8íV3.5

SL-75H

750 KW

862 KVA

1íV3

60íV120

50íV600

2.8íV3.5



Typical Melting Performance (KG / HR)


HZ


Type

Power
Oot Put

Power
In Put


Steel


Bronze


Iron


Aluminium

10,000
HZ

SL-01 M

10 KW

14 KVA

9

17

10

9

SL-02 M

20 KW

26 KVA

18

35

20

18

SL-03 M

30 KW

36 KVA

26

51

30

26

3,000
HZ

SL-05 M

50 KW

60 KVA

70

135

78

70

SL-07 M

75 KW

88 KVA

100

180

110

100

SL-10 M

100 KW

115 KVA

150

225

165

150

SL-12 M

125 KW

145 KVA

180

350

205

185

SL-17 M

175 KW

195 KVA

265

515

300

270

SL-22 M

225 KW

250 KVA

370

680

405

375

1,000
HZ

SL-20 M

200 KW

230 KVA

310

610

345

315

SL-25 M

250 KW

280 KVA

430

815

475

430

SL-30 M

300 KW

345 KVA

530

1000

590

530

SL-35 M

350 KW

390 KVA

620

1180

680

625

SL-50 M

500 KW

550 KVA

880

1725

1000

900

SL-60 M

600 KW

670 KVA

1050

2060

1200

1000

SL-75 M

750 KW

860 KVA

1400

2720

1575

1430

SL-100M

1000 KW

1150 KVA

1850

3625

2100

1900

500
HZ

SL-50 M

500 KW

550 KVA

880

1725

1000

900

SL-60 M

600 KW

670 KVA

1050

2060

1200

1090

SL-75 M

750 KW

860 KVA

1400

2720

1575

1430

SL-100M

1000 KW

1150 KVA

1850

3625

2100

1900

SL-150M

1500 KW

1680 KVA

2800

5440

3150

2860

SL-200M

2000 KW

2220 KVA

3800

7250

4200

3820

Based on nominal furnace size for second heat when lining is hot, charge is dense and busbar runs Proper. No molter heel required under any circumstances. For other metals, multiply the melt rate for steel by the following numbers: Aluminum-10; Copper-1.6; Gold-5.0; Sliver-2.85. Vacuum melting rates normallv will be 10 % longer.
